One Mismatched Tire Can Turn a $212 Fix Into a $3,858 Transfer Case Repair

6 min read · Last updated September 14, 2026

Mismatched tire circumference on an all-wheel-drive (AWD) car forces the drivetrain to absorb a speed difference between axles that never goes away, and Consumer Reports (CR) reports that Subaru itself warns owners that mismatch can cause serious mechanical damage. A $25-to-$35 tire-shaving service exists specifically to prevent it, far cheaper than the transfer case repairs, real 2017 cases compiled by MotorBiscuit put at $2,077 to $7,714, that continuous mismatch risks causing.

In this article

• Why a few 32nds of an inch matters this much
• What continuous slip does to a transfer case or differential
• Tire shaving: what it costs and when it works
• The math: shave one tire, replace the set, or gamble
• Frequently asked questions

Renee Kowalski picked up a long bolt in the right rear tire of her 2021 Subaru Outback on a Tuesday commute, and the shop quoted her $212 for one replacement tire. Her other three tires had about 6/32 inch of tread left. That single new tire, still carrying its full factory tread out of the box, would have put her Outback’s AWD system to continuous work every time she drove it. That kind of mistake costs a lot more than $212 down the road.

Why a few 32nds of an inch matters this much

On a front-wheel-drive or rear-wheel-drive car, a slightly taller tire on one corner is a rounding error. On an AWD car, it is a constant speed difference between axles, and the drivetrain has to do something with that difference every rotation.

A tire’s circumference shrinks as tread wears, so a worn tire rotates faster than a new one. Consumer Reports explains that Subaru directly warns owners that mismatched circumferences “can cause serious mechanical damage” to the AWD system, and tells drivers to check their owner’s manual for the exact tolerance.

A typical new all-season tire leaves the factory with about 10/32 inch of tread, per Consumer Reports, and is worn out at 2/32 inch. Renee’s tires sat at 6/32 inch. Bolting on a full-depth tire next to three at 6/32 inch stacks roughly 4/32 inch of extra circumference onto one corner, exactly the gap her owner’s manual would flag.

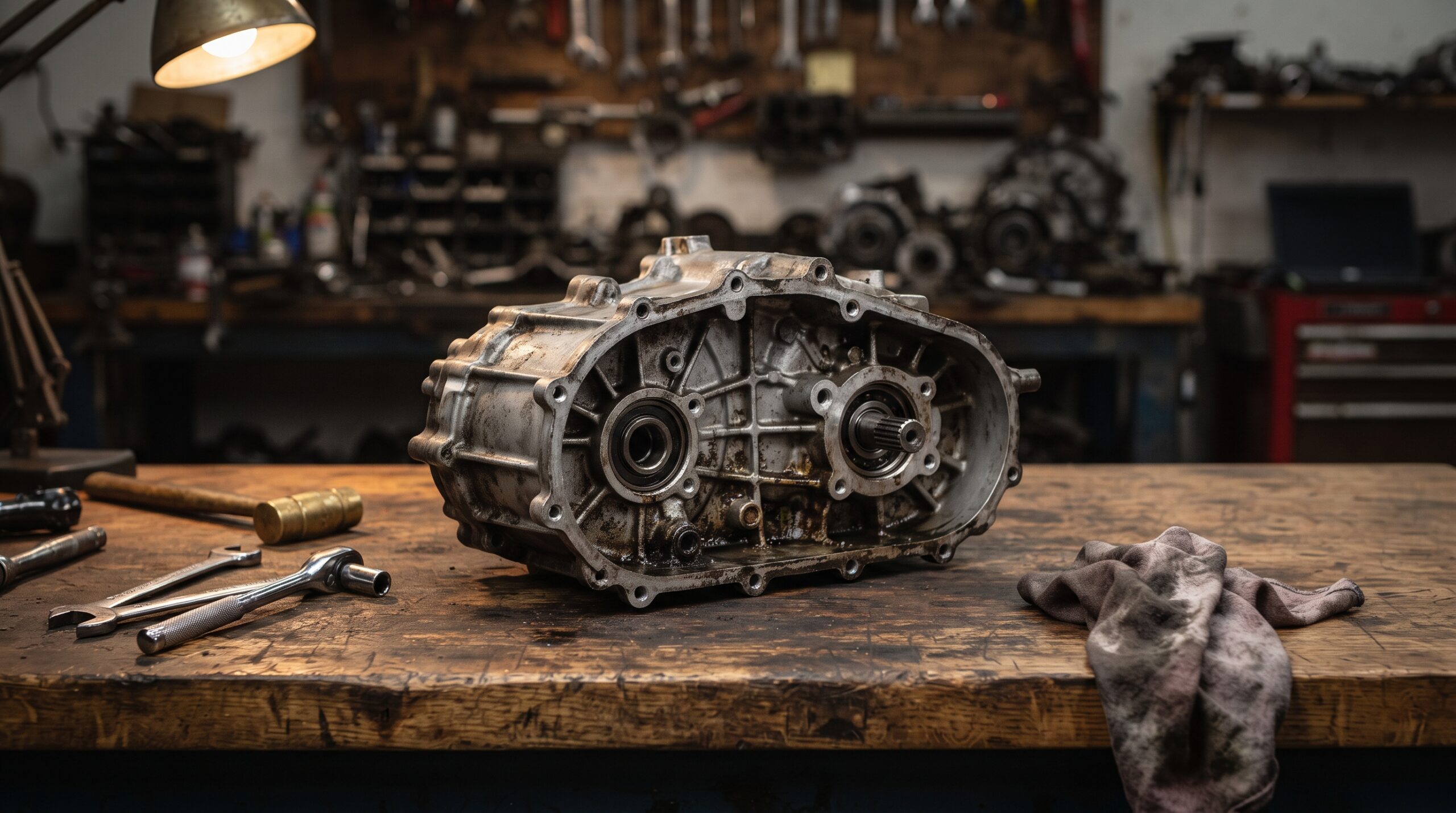

What continuous slip does to a transfer case or differential

AWD systems tolerate brief, momentary wheel-speed differences, the kind that happen when a car turns a corner or one tire briefly spins on ice. They are not built for a difference that never goes away.

A permanent mismatch means the center differential, transfer case clutch pack, or viscous coupling, whichever an AWD system uses, has to absorb that difference on every rotation, not just during a turn or a slip. A tread-depth mismatch trips no warning light. It quietly runs that component at full duty cycle, mile after mile, until something overheats and wears out.

That is a slow failure. It can take months before the symptoms show up as a shudder on tight turns or a whine from the transfer case. By then the damage is done.

Tire shaving: what it costs and when it works

Tire shaving is a shop grinding a new tire’s tread down, evenly, to match the other three. It is a real service, and Consumer Reports names it the standard fix for AWD owners replacing just one tire.

Per Consumer Reports, TireRack.com shaves any tire bought from the company for $25 to $35, though it likely voids that tire’s tread-wear warranty. Shaving Renee’s new tire to 6/32 inch brought her total to about $242, using the $212 average our tire-cost breakdown found in Consumer Reports member-survey data.

Shaving only makes sense within a range. Consumer Reports puts the sweet spot at tires no more than half worn, around 6/32 inch, right where Renee’s sat. Near the 2/32-inch wear-out mark, there may not be enough tread left to justify keeping them at all, a question our guide to deferred repair costs covers in more detail.

The math: shave one tire, replace the set, or gamble

Here is Renee’s actual decision, with every input named:

• New replacement tire: $212 (Consumer Reports member-survey average, per our tire-cost breakdown)



• Tire Rack shave service: $30 per tire (midpoint of Tire Rack’s $25 to $35 range)
• Shave option total: $212 + $30 = $242
• Full replacement set: 4 x $212 = $848
• Transfer case replacement if the mismatch is ignored: $2,077 to $7,714 across real 2017 repairs, per MotorBiscuit’s breakdown of Consumer Affairs data

Shaving the one tire ($242) instead of buying a full set ($848) saves $606 up front. Against the cheapest of those three real repairs, the F-150’s $2,077, the shave option costs about 8.6 times less. Against the Jeep Wrangler Sport’s $3,858, about 16 times less.

The option never on this list: bolt on one full-depth tire, skip the shave, drive away. That puts the differential to continuous work from the first mile.

Renee had her tire shaved to 6/32 inch before it went on the car: $242 total, matching the rest of her tread set from day one instead of leaving one corner running full depth. An alignment check after new tires is worth booking at the same visit, since a single-tire swap is also a common trigger for alignment drift on one corner.

Tread depth matching is only half the AWD tire story. The tires in a mismatched set can also be ageing out independently of wear, so it is worth checking how tire age interacts with tread depth before deciding a shaved or replaced tire is good for the long haul.

Frequently asked questions

How much tread-depth difference is too much for an AWD vehicle? It depends on the manufacturer. Consumer Reports reports that Subaru directly warns owners that mismatched tire circumference can cause serious mechanical damage to the AWD system, and tells drivers to check their own owner’s manual for the exact allowed difference, since the tolerance varies by brand and system rather than following one universal number.

What does tire shaving cost, and can any shop do it? Consumer Reports reports that TireRack.com charges $25 to $35 per tire to shave a tire bought from the company, though the process likely voids that tire’s tread-wear warranty. It is typically offered by mail-order tire retailers with the specialized equipment, not by every local independent shop, so ask before assuming the service is available where you buy the tire.

What actually breaks if I ignore the mismatch? The center differential, transfer case clutch pack, or viscous coupling, whichever your AWD system uses, is designed to handle brief wheel-speed differences, not a constant one. Forced to absorb a mismatch that never lets up, that component runs hot and wears out well before it should.

Is it ever fine to replace just one tire on an AWD car? Yes, when the new tire’s tread depth is close enough to the other three to stay inside your manufacturer’s stated tolerance. If it is not close enough, shaving the new tire down is usually cheaper than buying a full set.

How much does a damaged transfer case cost to fix if the mismatch goes unchecked? It varies widely by vehicle. MotorBiscuit’s compilation of Consumer Affairs data on real 2017 repairs found $2,077 for a Ford F-150 Lariat, $3,858 for a Jeep Wrangler Sport, and $7,714 for a Land Rover. Even the cheapest of those, the F-150’s $2,077, is about 8.6 times the $242 cost of buying and shaving one matched tire instead.
